SGS FTTH Communication SC APC Attenuator

Name: SGS FTTH Communication SC APC Attenuator
Brand: QualitY or QY
Price: 1.8 USD

Brand Name : QualitY or QY

Model Number : QATSC APC

Certification : ISO90012015, SGS

Place of Origin : Dongguan China

MOQ : 1pcs

Price : 1.8usd - 2.2usd/pcs

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2000 Piece per day SC APC patch cord

Delivery Time : 8-12 working days

Packaging Details : PE bag or customized package & cartons

Name : Optic fiber SC attenuator

dB : 5dB 10dB

Material : Metal

MOQ : 1PCS

Factory : Yes

Type : male to female

Connector type : SC APC or SC UPC

Application : Telecommunication

Contact Now

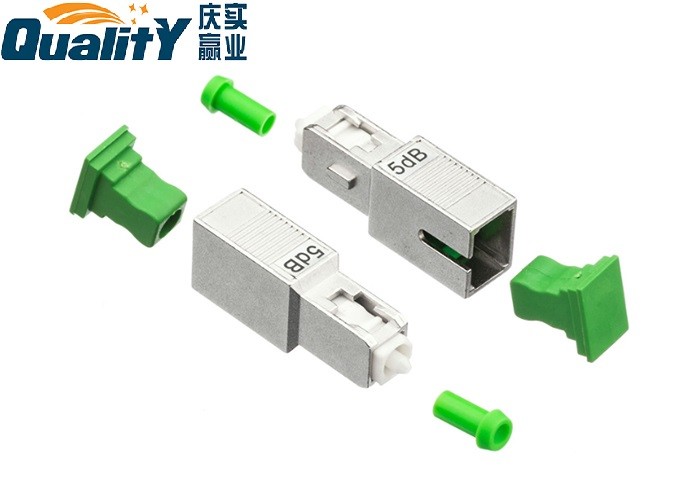

SC APC 5dB attenuator Male-Female optic fiber attenuator Communication

Qingying offers a wide range of Male to Female Attenuators. Available for use in Singlemode 9/125, Multimode 50/125 and Multimode 62.5/125 applications. Our Male to Female Build out Optical Attenuation are available in all fiber modes with LC, LC/APC SC, SC/APC, FC, FC/APC and ST types.

parameter		SM(9/125)
Attenuation values		1dB to 20dB(1dB step),25dB,30dB
Wavelength		1310nm & 1550nm
Attenuation Tolerance (dB)		1-10dB<±1.0dB ( typical ) standard
		11-25dB<±10% ( typical ) standard
		1-10dB<±0.5dB ( typical ) premium
		11-25dB<±5% ( typical ) premium
Return Loss	PC	≥45 dB
	UPC	≥55 dB
	APC	≥65 dB
Attenuator mode			Fixed type, male to female type, In-line type, Variable type
Operating Temperature			-40°C~+75°C
Storage Temperature			-40°C~+85°C

Resistance to high-power light source,

With light weight, small size, high accuracy, good stability, various forms, convenient characteristic.

Application :

Telecommunications

LAN

CATV

Fiber optic sensors

Testing instruments

FTTH

Multi-channel subscriber loop

Optical transmission system

Variable of attenuation ways and a bound of connector types
