Professional Factory Price Manufacturer Custom Industrial Telecommunication FTTH SC APC UPC Optical Fiber

Name: Professional Factory Price Manufacturer Custom Industrial Telecommunication FTTH SC APC UPC Optical Fiber
Brand: QualitY or QY
Price: 1 USD

Buy cheap Professional Factory Price Manufacturer Custom Industrial Telecommunication FTTH SC APC UPC Optical Fiber product

Brand Name : QualitY or QY

Certification : IEC or ISO9001

Place of Origin : Dongguan,China

MOQ : 100 pcs SC APC Fast Fiber Optic Connector

Price : Negotiation

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 10000 Piece per day SC APC Fast Fiber Optic Connector

Delivery Time : 7 working days

Packaging Details : Package details: 45 X 25 X 24 CM:(1000PCS)

MOQ : 100 PCS

Fiber type : SM

Lead time : 3-7working days

Insertion loss : ≤0.3dB

Return loss : ≥ 60dB

Application : FTTH FTTB FTTX Network,CATV

Color : Green

Repeatability : ≤0.1dB

Contact Now

Professional Factory Price Manufacturer Custom Industrial Telecommunication FTTH SC APC UPC Optical Fiber

Professional Factory Price Manufacturer Custom Industrial Telecommunication FTTH SC APC UPC Optical Fiber

Overview

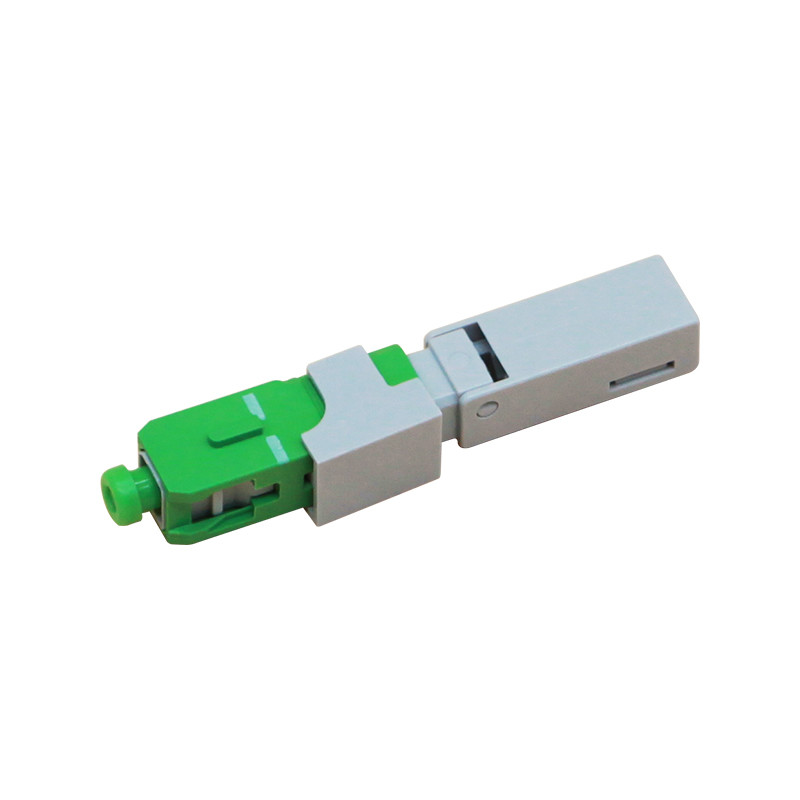

QY's Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series is already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Features

ROHS, CE compliant
Field-installable, cost-effective, user-friendly
Quick and easy fiber termination in the field
No need for a fusion splicer, power source, and tool for pressure
Effective data transmission
Small size

Application

FTTA
For the connection between the distribution box and RRH
Deployment in Remote Radio Head cell tower applications
Backbone installation
Datacenter cabling
Telecommunication network
Industrial & Military

Specification

Item Name	Unit	SC/APC Field Installable Connector
		Grade S (Standard)	Grade P (Premium)
Fiber Type	um	9/125	9/125 (Corning)
Polishing	---	APC
Insertion Loss	dB	≤0.5	≤0.3
Return Loss	dB	≥50	≥60
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Operating Temp.	℃	-25 ~ +70
Durability	times	≥1,000
Reusability	times	≥5
Tensile Strength	N	≥50
